Quarkus Runtime Performance

This the first part of a blog series that delves deeper into Quarkus performance. There are many aspects to the performance of a framework from bootstrap time to memory usage, compile time and runtime performance.

The definition of "performance" is contextual and these series of blog posts aims to investigate the performance of Quarkus in varying contexts.

This article will focus on runtime performance of applications built with Quarkus.

tl;dr - Summary

A REST application that retrieves data from a postgres database using transactions was created to compare the throughput and response latencies of Quarkus and Thorntail. The application was put under varying degrees of load, to demonstrate how Quarkus scales.

Quarkus running in native mode, supporting 40 concurrent connections, has shown to provide up to an 38.4% increase in maximum throughput whilst reducing maximum response time latencies by up to 42.7% compared to Thorntail for a single process.

Quarkus running in JVM mode, supporting 40 concurrent connections, has shown to provide up to an 136% increase in maximum throughput whilst reducing maximum response time latencies by up to 66.3% compared to Thorntail, for a single process.

Quarkus running on the JVM provides improved throughput and response time compared to Native mode for a single process, but uses up to 277% more memory (RSS).

For applications running in containers, constrained to 2048MB of RAM, it is theoretically possible to improve application throughput by up to 177.3% by running multiple instances of a Quarkus application in JVM mode, or 545% running multiple Quarkus instances in Native mode, compared to a Thorntail application.

Native images are not just for short running processes. The tests ran for up to 3 hours, without process restarts, and the native image served over 33 MILLION requests!

One size does not fit all! Quarkus gives you the option to scale up in JVM mode if you need a single instance with a larger heap, or scale out in Native mode if you need more, lighter-weight instances

Elephant in the Room

"It’s all well and good optimizing for bootstrap start-up times and image size, but response time is still important".

Let us first address the elephant in the room, Quarkus has so far been focused on start-up time and Memory Footprint.

"That’s because native performance sucks right?!" Wrong!

By running a sample application, retrieving data from a PostgreSQL database via transactional REST HTTP requests, I will address

  • Single process Throughput and Reponse Time in Native mode and JVM mode, compared to Thorntail

  • Native images for long running processes

Details of the application and test methodology can be found at the end of this post in the Test Application section.

What does Quarkus give you?

Quarkus provides you with a choice of 2 run modes. You can either run as a native binary or as bytecode on a JVM.

That means you can choose the runtime that meets your needs for your application. If a native image doesn’t give you what you need, no problem, choose your favourite JVM.

But don’t think that running on the JVM is a second rate citizen, Quarkus is optimized for running on the JVM as well as in native mode

Why compare with Thorntail?

Thorntail is a more traditional cloud-native stack that has its base from the WildFly community and we decided that it’s fair to compare with a runtime that we know how to optimize. The point of this performance test is not to compare frameworks vs framework, but to show that the optimizations done in Quarkus goes beyond just startup time and initial memory consumption. Thorntail is a great runtime, but just like other traditional cloud-native stacks the runtime dynamics behavior that wasn’t a concern on a standalone deployment is turning out to be a cause of significant overhead for modern deployment scenarios.

Throughput (Req/Sec)

Maximum throughput, measured in requests per second (Req/Sec) tells us the maximum number of request the single process application can service per second. The higher the maximum throughput, the better.

Comparing a native Quarkus application to Thorntail running on a JVM, the maximum throughput is consistent as the number of concurrent users increases.

Quarkus 0.18.0, running a single instance in Native mode with 40 concurrent connections, provides a 38.4% increase in maximum throughput compared to Thorntail 2.4.0.Final running on the JVM.

Quarkus 0.18.0, running a single instance in JVM mode with 40 concurrent connections, out-performs Thorntail 2.4.0.Final by 136%.

Throughput as a function of concurrent users

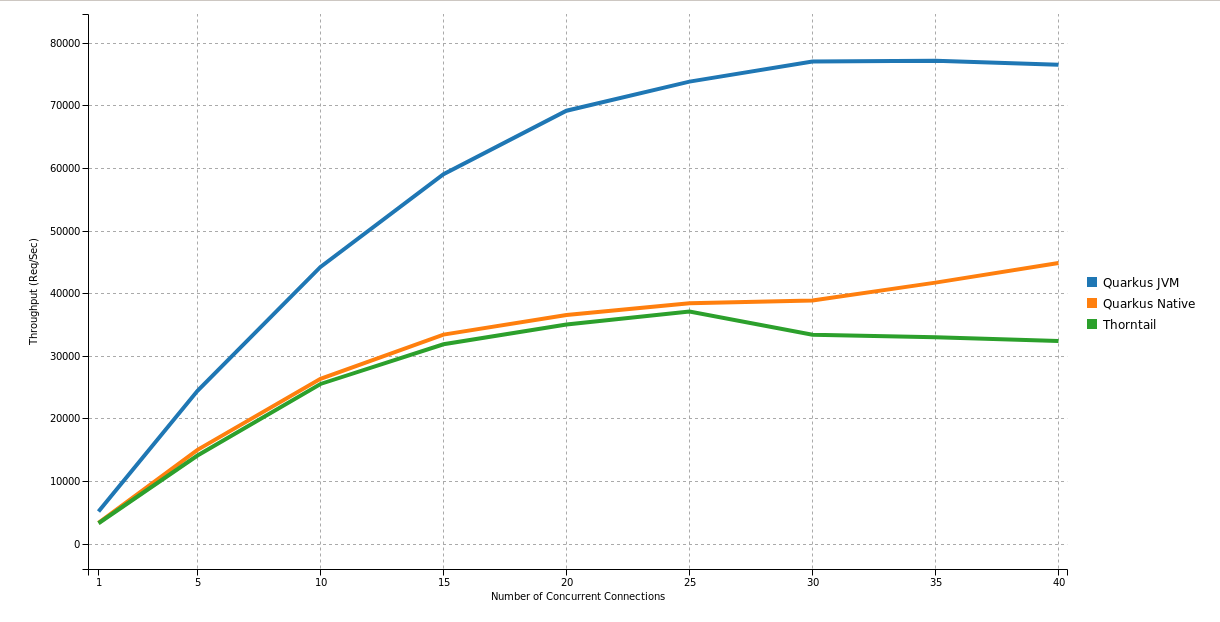

Figure 1. Maximum throughput (req/sec) as a function of concurrent users

Table 1. Maximum Throughput (Req/Sec)
Concurrent Connections Thorntail Quarkus - Native Quarkus - JVM

1

3,273

3,316

5,138

5

14,092

14,998

24,417

10

25,512

26,328

44,196

15

31,855

33,389

59,007

20

35,006

36,515

69,146

25

37,082

38,416

73,790

30

33,369

38,849

76,992

35

32,974

41,691

77,118

40

32,391

44,841

76,488

Response Times (ms)

I would like to start this section with the statement that "Everything You Know About Latency Is Wrong" [1]

Response time is a measure of the time it takes for the application to respond to a request. The lower the response time, the better. But mean response time is not the overall picture of application responsiveness. Maximum response time tells us more about user experience than mean response time.

Why is this important? Maximum response time tells us the worst case scenario, and between 26-93% of page loads will experience the 99th centile response time [2]. Having a super low, super stable maximum response latency increases application responsiveness.

Under high numbers of concurrent users; Mean response time for Quarkus in JVM mode is 0.91ms vs 1.69ms for Thorntail. When running in Native mode, mean response time shifts to 2.43ms in exchange for the lower memory utilization.

If we look at the Maximum response time; Thorntail took 145.3ms to service at least one request, compared to 65.01ms for Quarkus JVM and 83.27ms for Quarkus Native.

The maximum response time for Quarkus in native mode is super-stable and up to 42.7% lower than Thorntail.

The lower mean response time latencies running on the JVM are due to the GC implementations available in the JVM are superior to the GC implementation currently available in GraalVM. Quarkus is currently still a Beta release, and improvements are planned for running in native mode

Mean Response Time as a function of concurrent users

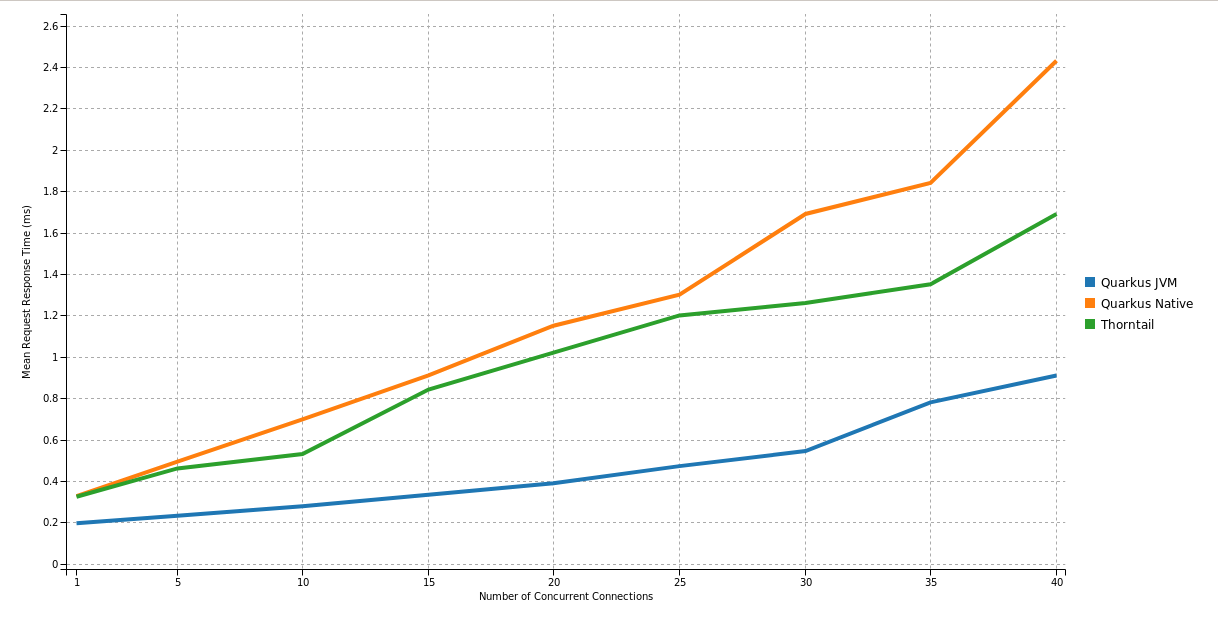

Figure 2. Mean Response Time (ms) as a function of concurrent users

Mean Response Time as a function of concurrent users

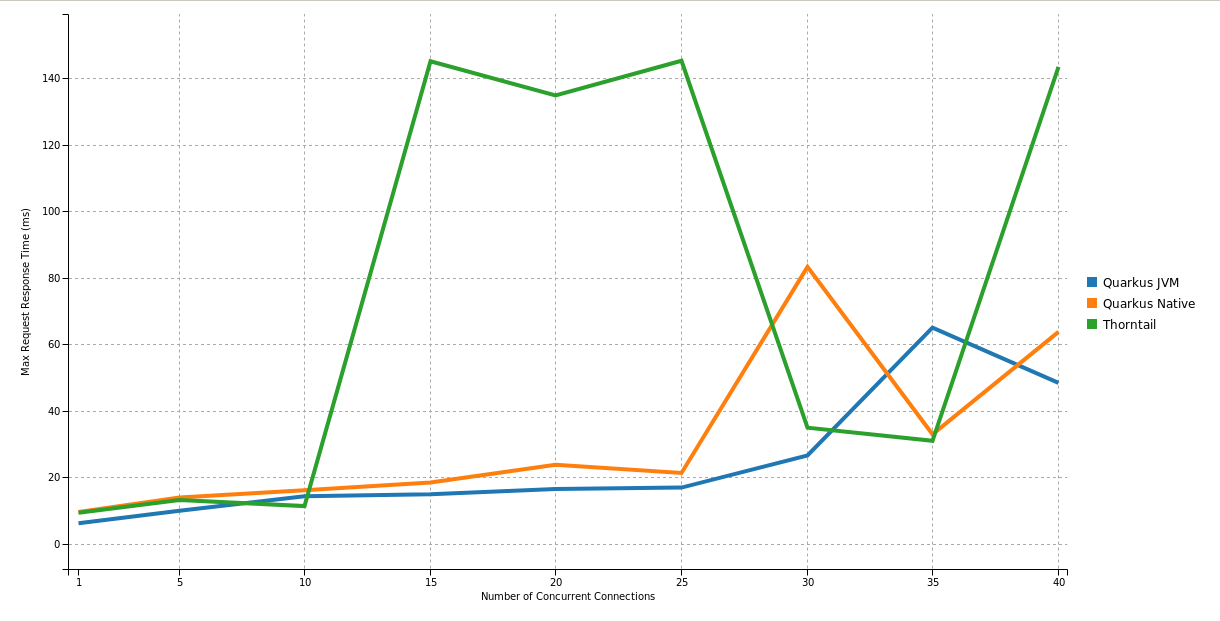

Figure 3. Maximum Response Time (ms) as a function of concurrent users

Table 2. Response Time (ms)
Concurrent Connections Thorntail (mean) Thorntail (max) Quarkus - Native (mean) Quarkus - Native (max) Quarkus - JVM (mean) Quarkus - JVM (max)

1

0.324

9.31

0.327

6.13

0.196

9.52

5

0.461

13.12

0.494

9.86

0.232

13.85

10

0.53

11.3

0.698

14.24

0.278

16.08

15

0.842

145.16

0.91

14.86

0.334

18.38

20

1.02

134.9

1.15

16.4

0.389

23.7

25

1.2

145.3

1.3

16.86

0.472

21.25

30

1.26

34.87

1.69

26.52

0.545

83.27

35

1.35

30.94

1.84

65.01

0.78

32.9

40

1.69

143.49

2.43

48.37

0.91

63.71

Application Start Time

start-up times and memory usage were measured for each runtime using the method described here https://quarkus.io/guides/performance-measure

Metric Thorntail Quarkus - Native Quarkus - JVM

Start Time

8764 ms

18 ms

1629 ms

Maximum Memory Usage

Memory for each application process was measured with ps

$ ps -o rss -p <PID>

The maximum memory usage during the runs was captured.

Thorntail Quarkus - JVM Quarkus - Native

651 MB

414 MB

122 MB

Compared to Thorntail, Quarkus in native mode used only 18.7% of memory to service 20.9% more requests and Quarkus in JVM mode used 63.6% of memory to service 108.0% more requests

Therefore, using a machine with 2048MB of memory, running more than one process (not constrained by CPU), it should be possible to achieve the following increases in throughput over Thorntail;

Runtime Mode Memory (MB) Number processes per 2048MB Max Throughput per Process (Req/Sec) Overall Max Throughput (Req/Sec) Compared to Thorntail

Thorntail

651

3

37,082

111,246

100%

Quarkus - JVM

414

4

77,118

308,472

277%

Quarkus - Native

122

16

44,841

717,456

645%

For applications running in cloud environments, it is theoretically possible to improve application throughput by up to 545% for the same amount of memory by running multiple instances of a Quarkus application in native mode.

Quarkus native - Long running processes

Another concern is that Quarkus running in native mode is not suitable for long running processes.

During testing, Quarkus was running in native mode for more than 3hrs at a time, and serviced over 51,890,000 requests!

These requests caused hundreds of Full GC cycles, and the process remained stable throughout.

Test Application

The test application is a Transactional REST/JPA application that makes calls to a PostgreSQL database. The application and database were both running inside a Docker container.

Building and Running test Application

前提条件

  • Docker (min v1.13.1)

  • Maven (min 3v.5.4)

Build;

Quarkus JVM

 $ cd ./quarkus
 $ build-quarkus-jvm.sh

or Quarkus Native

 $ cd ./quarkus
 $ build-quarkus-native.sh

or Thorntail

 $ cd ./thorntail
 $ ./build-thorntail.sh

Run;

First start PostgreSQL running in a Docker container;

docker run -d --rm -p 5432:5432 --network host  \
	-e POSTGRES_DB='rest-crud' \
	-e POSTGRES_USER='restcrud'  \
	-e POSTGRES_PASSWORD='restcrud' \
	docker.io/postgres:10.5

then start the application running in a Docker container;

 $ cd ./quarkus
 $ ./run-quarkus-jvm.sh

or Quarkus Native

 $ run-quarkus-native.sh

or Thorntail

 $ cd ./thorntail
 $ ./run-thorntail.sh

Runtime validation

Navigate browser to http://{REMOTE_HOST}:8080/

or

$ curl -D - http://{REMOTE_HOST}:8080/fruits

HTTP/1.1 200 OK
Connection: keep-alive
Content-Type: application/json
Content-Length: 75
Date: Mon, 01 Apr 2019 07:57:17 GMT

[{"id":2,"name":"Apple"},{"id":3,"name":"Banana"},{"id":1,"name":"Cherry"}]

実行時パフォーマンスメトリクス

Throughput and Response Time were measured using the wrk command line tool https://github.com/wg/wrk.

A shell script for running wrk is provided;

$ ./runWrk.sh

実行環境

System Under Test

CPU: 32 x Intel® Xeon® CPU E5-2640 v3 @ 2.60GHz

Operating System: Red Hat Enterprise Linux Server release 7.6 (3.10.0-693.25.2.el7.x86_64)

Memory: 262GB

Ethernet: Solarflare Communications SFC9020 10G Ethernet Controller

Client system

CPU: 24 x Intel® Xeon® CPU E5-2640 @ 2.80GHz

Operating System: Red Hat Enterprise Linux Server release 7.6 (3.10.0-229.el7.x86_64)

Memory: 64GB

Ethernet: Solarflare Communications SFC9020 [Solarstorm]

JVM

Java HotSpot™ 64-Bit Server VM (build 25.191-b12, mixed mode)
